HONEYWELL FS-TSAI-1620M Field termination assembly module

FS-TSAI-1620M
FS-TSAI-1620M
FS-TSAI-1620M
FS-TSAI-1620M
FS-TSAI-1620M

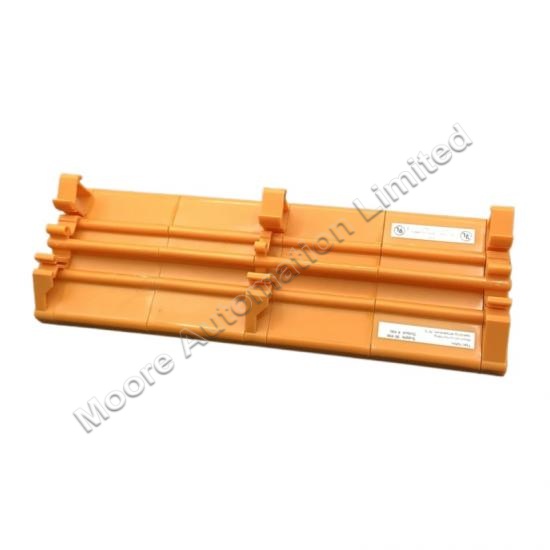

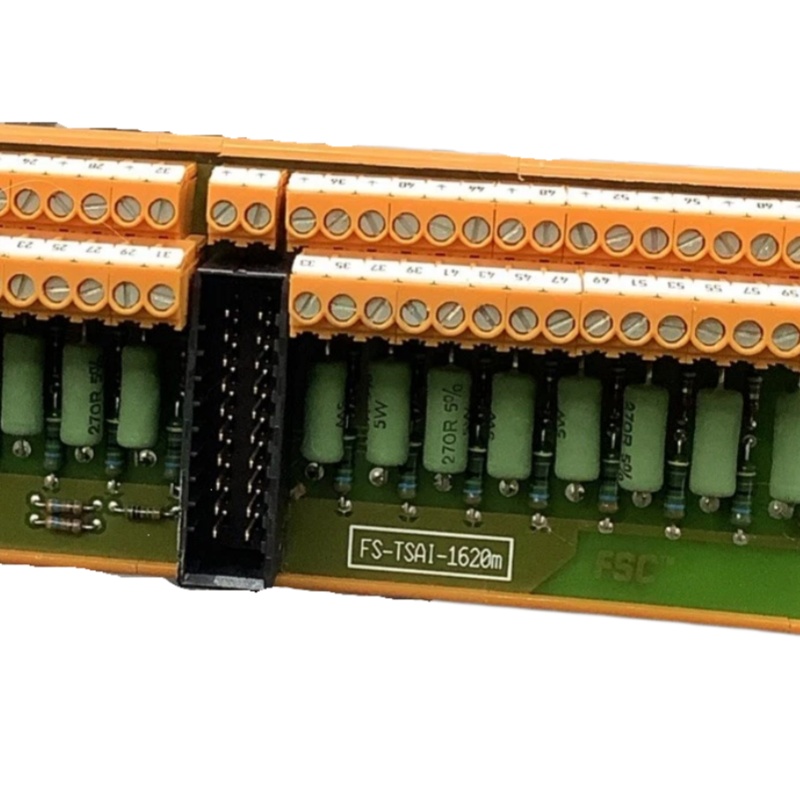

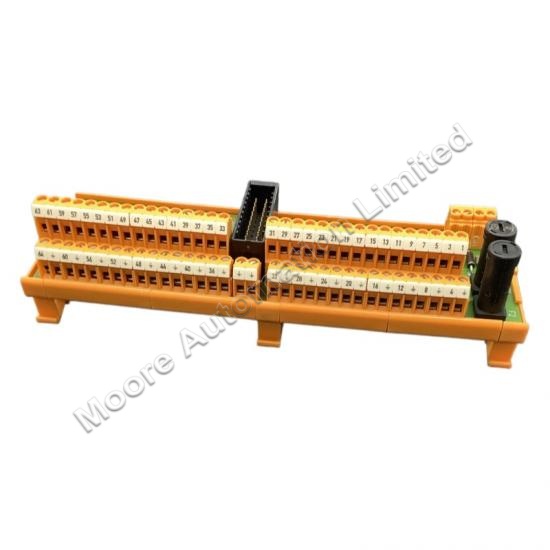

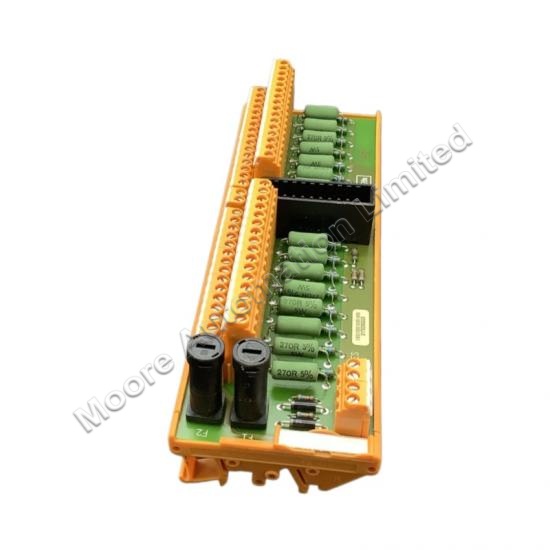

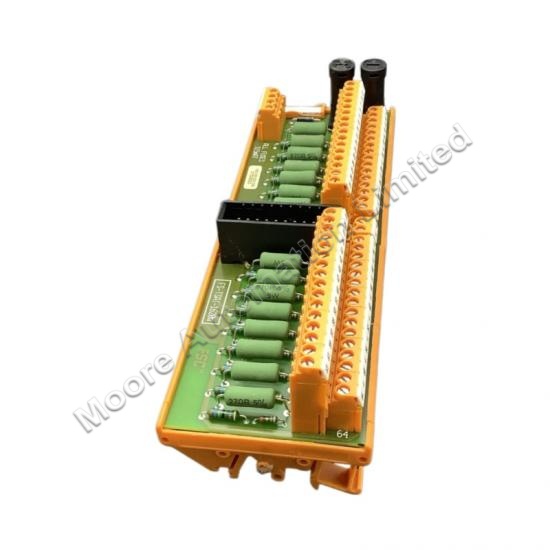

HONEYWELL FS-TSAI-1620M Field termination assembly module

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex


Professional one-on-one service

100% brand new and original

The FS-TSAI-1620M field termination assembly module serves as the interface between field components (such as sensors) and the fail-safe high-density analog input module 10105/2/1 in the FSC system. It is suitable for interfacing signals from Class I, Division 2 Hazardous Locations.

  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    HONEYWELL

    Number of Input Channels: 16 (2 groups of 8 with common 0 V)
    Power Requirements: 30 Vdc external
    Input Current: 0 to 25 mA
    Input Resistance: 250 Ohm (± 1%)
    Output Resistance: 270 Ohm (± 5%)
    Output Voltage: 0 to 4 Vdc
    Accuracy: 0.1%
    Maximum Loop Inductance: 6 mH
    Maximum Loop Capacitance: 0.25 µF
    Tightening Torque: 0.5 Nm (0.37 ft-lb)



    Model Number

    FS-TSAI-1620M

    Alternate Part Number

    FS-TSAI-1620M

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    21x7x6cm

    Description

    Field termination assembly module

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    0.14 kg

    Warranty

    12 Months

  • Product Details

  • Product Description:
    The FS-TSAI-1620M field termination assembly module serves as the interface between field components (such as sensors) and the fail-safe high-density analog input module 10105/2/1 in the FSC system. It is suitable for interfacing signals from Class I, Division 2 Hazardous Locations. The FS-TSAI-1620M module features sixteen analog input channels, which can be used for both safety-related and non-safety-related applications. These sixteen channels are divided into two groups of eight, with a common 0 V, and are connected via a system interconnection cable (SIC) that plugs into the SIC connector on the FTA module. Additionally, the FTA module offers a universal snap-in facility for mounting on standard DIN EN rails, and screw terminals for connecting the power supply, ground, and field wiring.


    Frequently Asked Questions (FAQ):
    1.What is the maximum loop inductance supported by the HONEYWELL FS-TSAI-1620M?
    The maximum loop inductance supported by the HONEYWELL FS-TSAI-1620M is 6 mH.


    2.What is the function of the HONEYWELL FS-TSAI-1620M Field Termination Assembly Module?
    The HONEYWELL FS-TSAI-1620M is an interface module between field components (like sensors) and the fail-safe high-density analog input module 10105/2/1 in the FSC system. It supports signals from Class I, Division 2 Hazardous Locations and can be used for both safety-related and non-safety-related applications.


    3.What is the maximum loop capacitance of the HONEYWELL FS-TSAI-1620M?
    The HONEYWELL FS-TSAI-1620M supports a maximum loop capacitance of 0.25 µF.

    4.What is the tightening torque for the HONEYWELL FS-TSAI-1620M?
    The tightening torque for the HONEYWELL FS-TSAI-1620M is 0.5 Nm (0.37 ft-lb).


    5.How do I get the price of FS-TSAI-1620M?
    Please contact our sales director Ms. Sandy for a discount exclusive quote, Email plcinfo@mooreplc.com Mob/Whatsapp: +86-18020776786.

    Application:

    Oil and gas: Offshore drilling platforms, oil production plants, liquefied natural gas storage and transportation, refineries.
    Petrochemical and chemical industry: Reactor monitoring, distillation tower control, high integrity pressure protection systems.
    Electricity industry: Boiler protection systems for nuclear and conventional power plants, turbine monitoring.
    Pharmaceutical and fine chemical industry: Extremely strict environmental monitoring of clean rooms, safety control of fermentation tanks.


    Core functions:
    Safety level: Designed in accordance with SIL3 standards, suitable for non-igniting (Non-incendive) field circuits in Class I, Division 2 hazardous areas.
    Power distribution monitoring: Supports allocation of power to field transmitters and provides voltage/current limit protection; when used in conjunction with the TPSU-2430 module, it enables comprehensive monitoring of external power sources.
    Channel grouping: 16 channels are divided into two groups (each group 8 channels), with a common 0V reference point shared by each group and protected by a 315 mA slow-melting fuse.

  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspectio.
